Training & education drones

Equipment for drone academies, schools and retail distributors. CSX3 and CSX4 are full-size hexacopter airframes for pilot training and assembly courses. Drone soccer balls, arenas and electronic goals cover league play and STEM programmes. Compact 4K camera drones are supplied by the carton for resellers.

Pilot-training hexacopters

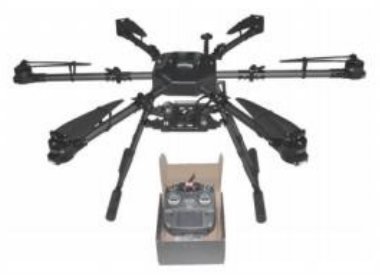

CSX3

Hexacopter airframe for pilot schools and assembly training

Empty weight: 9 kg
Endurance: 15–20 min (no payload)
Control range: 3 km
Battery: 12S 16000 mAh

Full specifications

Configuration	Hexacopter, 6 arms / 6 rotors
Diagonal wheelbase	1300 mm
Empty weight	9 kg
Control range	3 km
Remote controller	Skydroid / Futaba
Battery	12S 16000 mAh
Service ceiling	500 m
Endurance	15–20 min (no payload)
Hover accuracy	±1.5 m horizontal, ±0.5 m vertical
Size unfolded / folded	1320×1490×600 / 640×550×600 mm

Manufacturer data. Final specification is confirmed in the quotation.

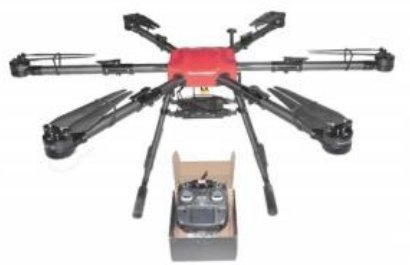

CSX4

Hexacopter airframe for pilot schools and assembly training

Empty weight: 13.8 kg
Endurance: 15–20 min (no payload)
Control range: 3 km
Battery: 12S 22000 mAh

Full specifications

Configuration	Hexacopter, 6 arms / 6 rotors
Diagonal wheelbase	1650 mm
Empty weight	13.8 kg
Control range	3 km
Remote controller	Skydroid / Futaba
Battery	12S 22000 mAh
Service ceiling	500 m
Endurance	15–20 min (no payload)
Hover accuracy	±1.5 m horizontal, ±0.5 m vertical
Size unfolded / folded	1620×1800×700 / 960×870×700 mm

Manufacturer data. Final specification is confirmed in the quotation.

Compact camera drones

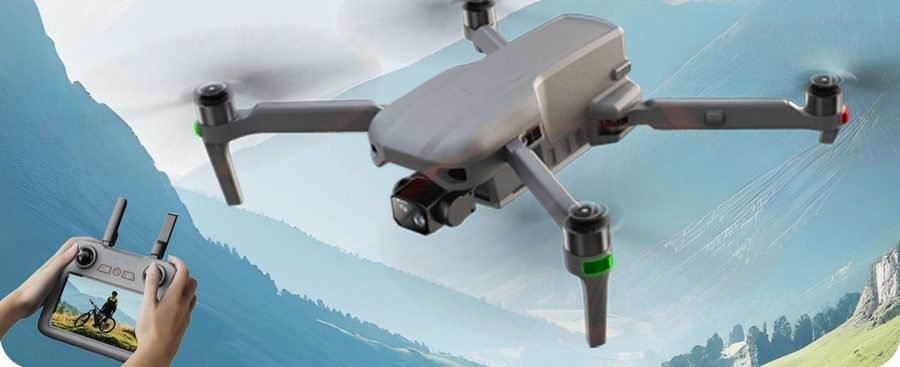

GD98 Max

53-minute flight and 10 km range

Weight: 753.5 g
Endurance: 53 min
Control range: 10 km
Packing: 6 pcs / carton

Full specifications

Weight	753.5 g
Endurance	53 min
Control range	10 km
Battery	11.4 V 6000 mAh
Charging time	480 min
Features	3-axis gimbal, 4K UHD lens, 4-direction laser obstacle avoidance, touchscreen controller
Packing	6 pcs / carton

Manufacturer data. Final specification is confirmed in the quotation.

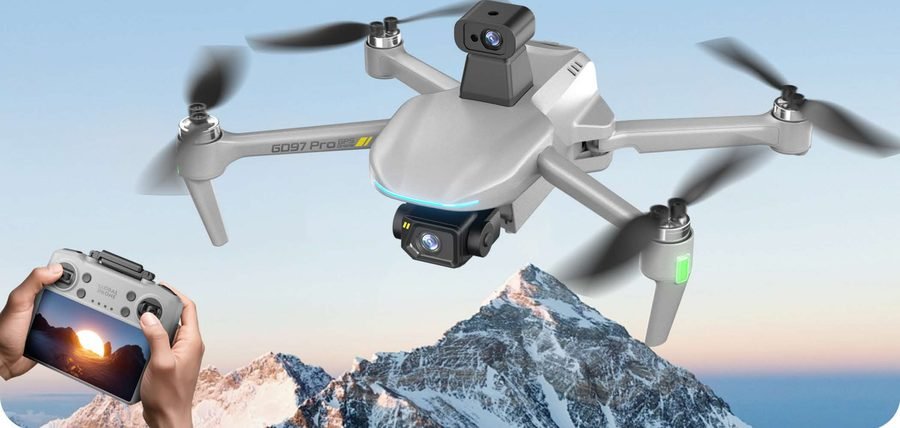

GD97 Pro

Gimbal camera drone with 6 km link

Weight: 394.5 g
Endurance: 28 min
Control range: 6 km
Packing: 8 pcs / carton

Full specifications

Weight	394.5 g
Endurance	28 min
Control range	6 km
Battery	11.1 V 3000 mAh
Charging time	180 min
Features	3-axis gimbal, 4K camera, 4-direction laser obstacle avoidance, optical flow + GPS
Packing	8 pcs / carton

Manufacturer data. Final specification is confirmed in the quotation.

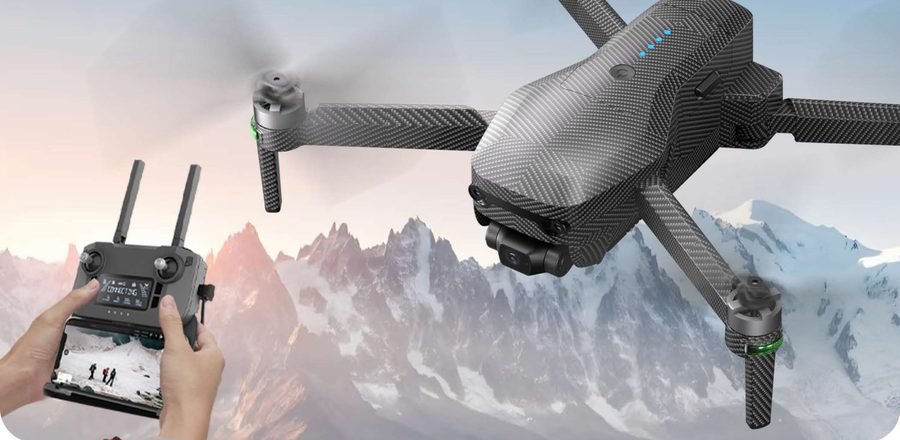

GD96

4K Sony sensor on a brushless gimbal

Weight: 590 g
Endurance: 30 min
Control range: 3.5 km
Packing: 8 pcs / carton

Full specifications

Weight	590 g
Endurance	30 min
Control range	3.5 km
Battery	11.4 V 3000 mAh
Charging time	600 min
Features	3-axis brushless gimbal, 4K Sony sensor, front and rear binocular obstacle avoidance
Packing	8 pcs / carton

Manufacturer data. Final specification is confirmed in the quotation.

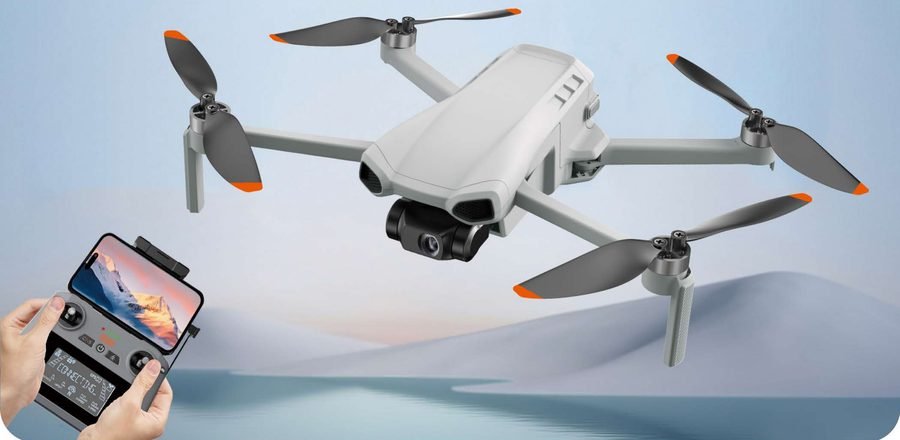

GD017

Under 250 g with 35 minutes flight

Weight: 247 g
Endurance: 35 min
Control range: 10 km
Packing: 8 pcs / carton

Full specifications

Weight	247 g
Endurance	35 min
Control range	10 km
Battery	7.6 V 2000 mAh
Charging time	120 min
Features	Brushless motors, 4K UHD camera, 3-axis gimbal, laser obstacle avoidance
Packing	8 pcs / carton

Manufacturer data. Final specification is confirmed in the quotation.

GD98

Digital video link and touchscreen controller

Weight: 651 g
Endurance: 25 min
Control range: 3 km
Packing: 8 pcs / carton

Full specifications

Weight	651 g
Endurance	25 min
Control range	3 km
Battery	7.6 V 3400 mAh
Charging time	400 min
Features	4K FHD camera, digital video link, 4-direction obstacle avoidance, touchscreen controller
Packing	8 pcs / carton

Manufacturer data. Final specification is confirmed in the quotation.

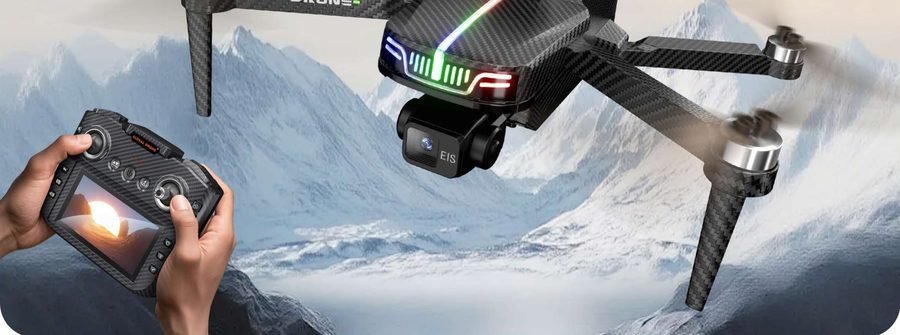

GD97 Max Ultra

Compact gimbal drone with laser sensing

Weight: 266 g
Endurance: 22–25 min
Control range: 3 km
Packing: 10 pcs / carton

Full specifications

Weight	266 g
Endurance	22–25 min
Control range	3 km
Battery	7.4 V 2200 mAh
Charging time	3–4 h
Features	3-axis gimbal, 4K, laser obstacle avoidance, lighting effects
Packing	10 pcs / carton

Manufacturer data. Final specification is confirmed in the quotation.

GD95 Pro Max

Entry camera drone for retail ranges

Weight: 214 g
Endurance: 20 min
Control range: 1 km
Packing: 12 pcs / carton

Full specifications

Weight	214 g
Endurance	20 min
Control range	1 km
Battery	7.4 V 2200 mAh
Charging time	180 min
Features	Brushless motors, 4K camera, 5G Wi-Fi video, 4-direction laser obstacle avoidance
Packing	12 pcs / carton

Manufacturer data. Final specification is confirmed in the quotation.

GD94 Max

24 per carton for high-volume retail

Weight: 274.4 g
Endurance: 20 min
Control range: 1 km
Packing: 24 pcs / carton

Full specifications

Weight	274.4 g
Endurance	20 min
Control range	1 km
Battery	7.4 V 2200 mAh
Charging time	240 min
Features	Brushless motors, 4K camera, 5G Wi-Fi video, laser obstacle avoidance
Packing	24 pcs / carton

Manufacturer data. Final specification is confirmed in the quotation.

Drone soccer and STEM

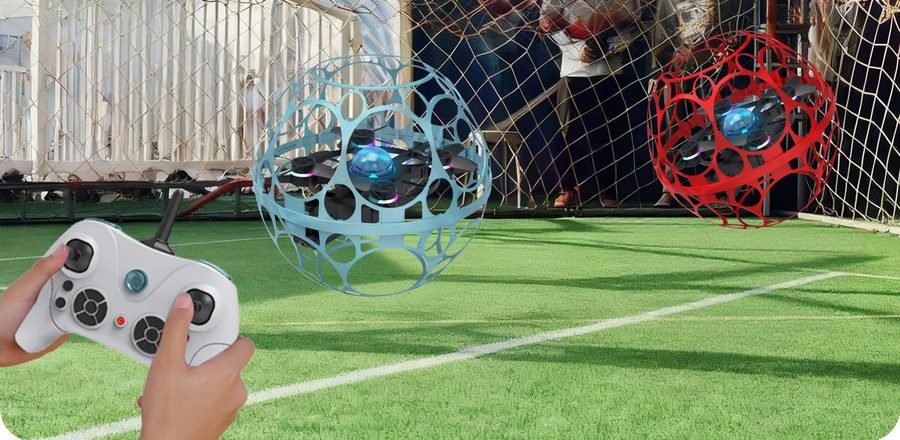

GD18 Drone Soccer

Caged ball drone for drone soccer leagues

Weight: 196 g
Endurance: 12 min
Control range: 100 m
Packing: 18 pcs / carton

Full specifications

Weight	196 g
Endurance	12 min
Control range	100 m
Battery	7.4 V 2200 mAh
Charging time	300 min
Features	20 cm protective cage ball, 360° roll, headless mode, one-key take-off and landing
Packing	18 pcs / carton

Manufacturer data. Final specification is confirmed in the quotation.

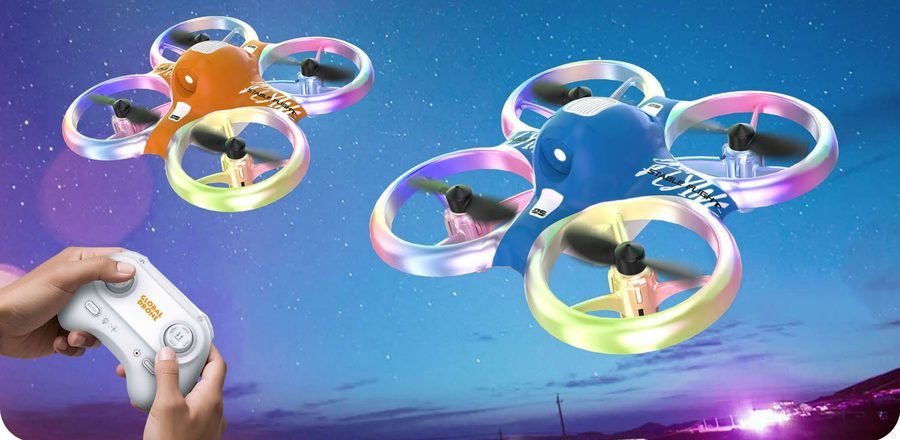

GD66

Indoor mini drone for STEM classes

Weight: 46.6 g
Endurance: 10 min
Control range: 100 m
Packing: 72 pcs / carton

Full specifications

Weight	46.6 g
Endurance	10 min
Control range	100 m
Battery	3.7 V 500 mAh
Charging time	90 min
Features	360° flips, RGB lighting with seven modes
Packing	72 pcs / carton

Manufacturer data. Final specification is confirmed in the quotation.

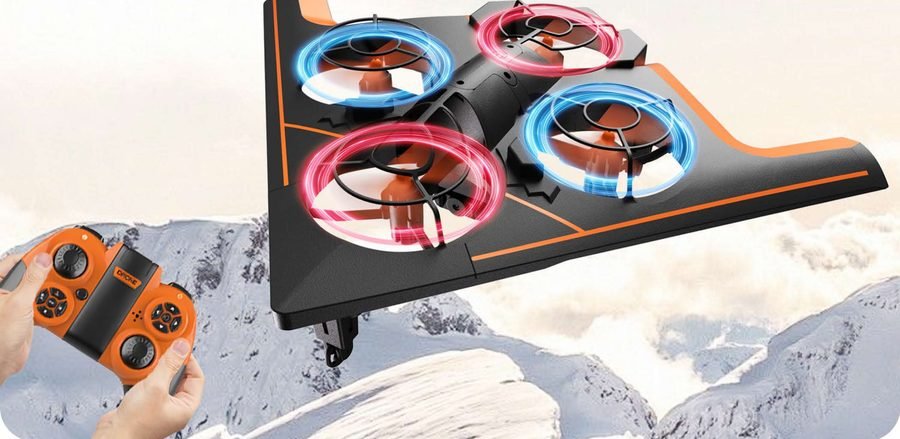

GD02

Flying-wing styled trainer with camera

Weight: 82.7 g with camera
Endurance: 5 min
Control range: 100 m
Packing: 12 pcs / carton

Full specifications

Weight	82.7 g with camera
Endurance	5 min
Control range	100 m
Battery	3.7 V 650 mAh
Charging time	60 min
Features	Flying-wing shell, 360° rotation, light control, SD camera with Wi-Fi view
Packing	12 pcs / carton

Manufacturer data. Final specification is confirmed in the quotation.

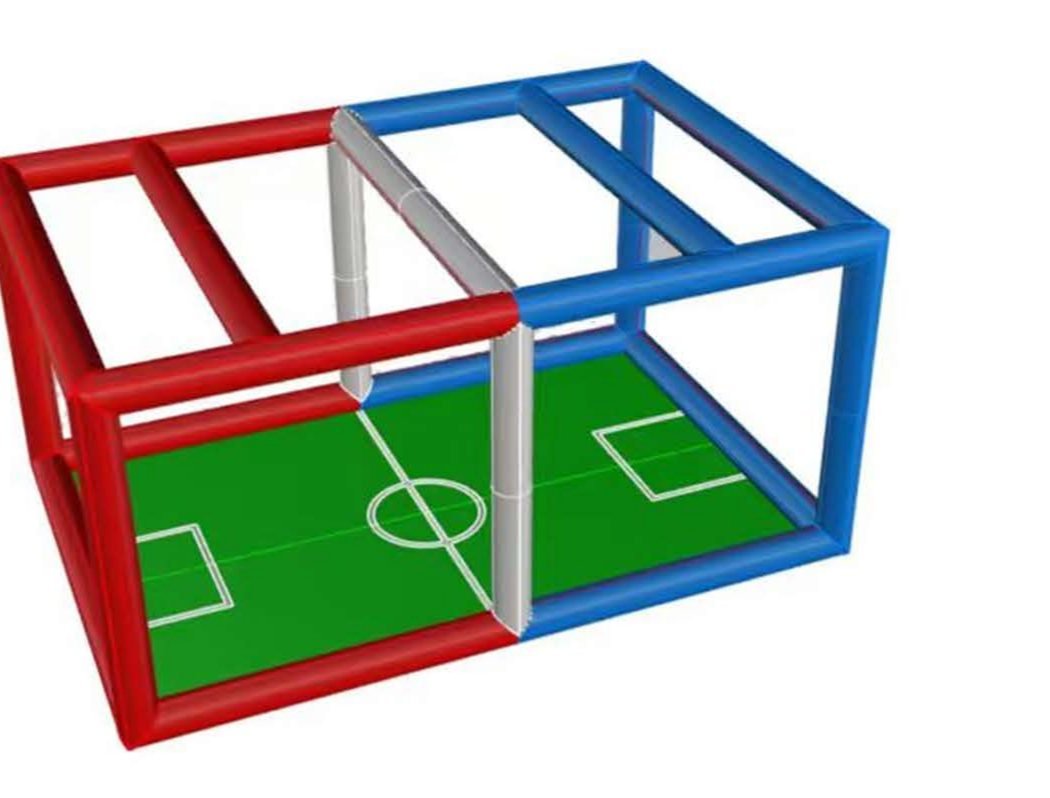

Drone soccer arenas and goals

Inflatable closed arenas set up in about 20 minutes, from 3×3×3 m to 12×6×4 m. Goals in 30 cm, 33×20 cm and 63×43 cm, electronic goals with Bluetooth or button scoring in 50 to 80 cm, and scoreboard systems for match play.

Need a configuration that is not listed?

Payloads, batteries, spare-part kits and ground stations are quoted on request. Describe the job and we propose a setup.
